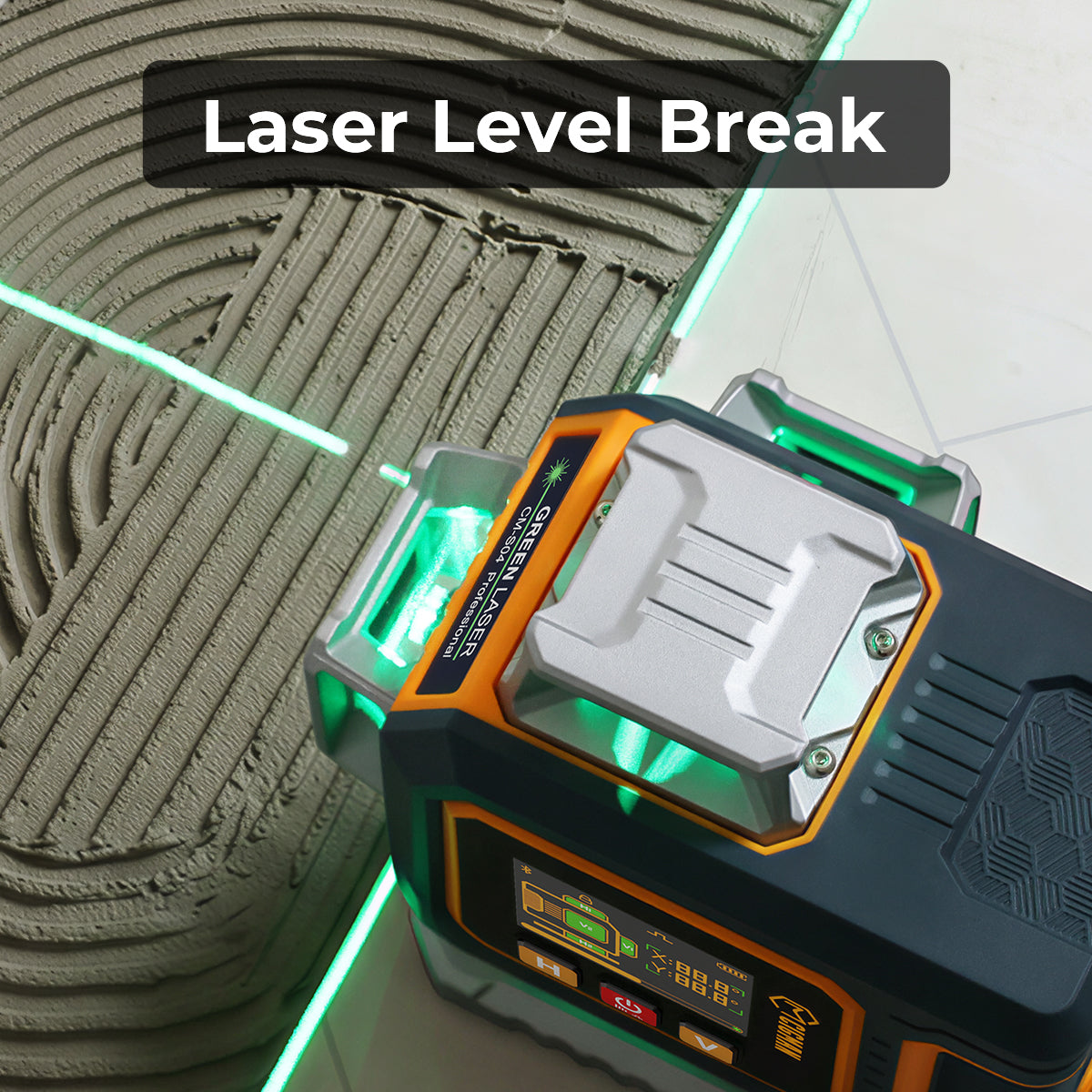

Why Is There A Break In My Laser Level Casing?

Learn why laser levels require physical gaps in their casing, and how these window designs impact 360 degree projection, accuracy, and close wall applications.

Why CIGMAN Write

CIGMAN writes to help DIYers and professionals understand the physical mechanics behind laser level designs to make informed tool choices.

What This Blog Solves

This blog explains the necessity of casing gaps, exposes the flaws of rotating windows, and provides a targeted buying guide for all skill levels.

By Cigman

Table Of Contents

You might look at a laser level and wonder why it has that specific, odd shape. It really comes down to how the machine actually works. Inside the tool, there is a laser diode that shoots out a beam, and then we use a prism or a motor to turn that single beam into a horizontal or vertical plane.

Why Does It Have To Have That Laser Break?

First, you have to think about the light output. The laser has to shoot out from deep inside the machine. That notch you see is literally the "exit door" for the laser. If we did not have this physical opening cut out of the body, the outer shell would simply stand in the way and block the beam.

Then there is the issue of the Fan Angle. Many levels use a cylindrical prism to spread a single dot into a long line. To make that line cover a wide area, sometimes even a full circle, the outer shell has to leave a large open area at that specific angle. If the opening is not big enough, the body of the machine cuts off the edges of the projected line. This creates shadows, which you definitely do not want.

You also see this very clearly on modern 3D levels. They usually have three separate windows with one horizontal and two vertical ones. These protruding boxy towers are there for a very specific practical reason. They allow the laser line to get extremely close to the wall and the floor. This lets you do close-up tasks like plastering or tiling right up against the surface without the machine getting in the way.

What is the glass cover on laser housing?

The clear material you see sealing the gap is not just ordinary window glass. It actually performs a couple of very specific jobs that keep your tool running.

It acts as a shield for the delicate system inside. The laser level has a hanging pendulum inside that handles the automatic self-leveling. It is very sensitive. The glass at the gap keeps dust and water vapor from getting inside the housing. If dust got in, it would mess with the movement of the pendulum and ruin your accuracy.

It also reduces refraction errors. We grind this glass with high precision. This is important because it makes sure that when the laser passes through it, the beam travels straight. It does not shift off course or scatter, which would give you a fuzzy or inaccurate line.

Are there designs without a gap?

Strictly speaking, as long as a device projects laser light outward, it has to have an exit for the light. You cannot trap the light inside. But there are indeed some designs where that big, obvious gap is hidden better.

First you have the fully enclosed Rotary Laser Levels. These machines are usually found on large outdoor construction sites. Although they still have glass windows, the top is usually a solid protective cover. It uses an internal rotating laser dot that spins at high speed to form a line. Because of this, it looks more like a closed cylinder rather than a box with side cuts.

Then there are simple handheld laser measures. Some purely handheld laser rulers have a very small laser exit. It looks just like the head of a flashlight, so it does not look like a huge gap. But the downside is that it can only project a single dot or a very short line segment. It cannot provide a level plane that covers the whole room like a line laser does.

Finally, there are concept designs with fully transparent shells. A very small number of high-end experimental products have tried to use large area transparent shells to get rid of the gap look. But it is extremely hard to do work in real engineering.

One problem is reflection interference. A clear transparent shell causes the laser to reflect multiple times inside the casing. This creates false "ghost lines" that confuse the user.

The other problem is structural strength. Laser instruments often get bumped around on rough construction sites. The fragile emitter needs a strong metal or plastic frame to protect it. That is why we end up with this typical structure of a sturdy bracket plus a window, rather than a fragile glass shell.

Are There Products With Smaller breaks
And How Do They Do It?

You can indeed find laser levels on the market where the gap looks much smaller and the whole unit feels more solid. These products mainly pull this off by changing the way they shoot the light or by optimizing the window structure.

Rotary Laser Technology

This is the most effective way to reduce the appearance of those large gaps. The way it works is interesting. There is only one laser dot inside. It spins at high speed. It goes hundreds of times a minute. It uses the visual persistence effect of the human eye to form what looks like a solid line.

As for the look these machines usually have a cylindrical or cone shaped protective cover on top. The laser shoots out from the spinning mechanism inside. Because of this, it does not need huge boxy cutouts on the side like a 3D line laser. Common Rotary Lasers are the best example here. They look more like a sealed precision instrument rather than a box with holes.

Window Structure Optimization for Line Lasers

Some products manage to reduce the visual size of the gap. They might split the large window into multiple small holes or use ultra thin high strength materials.

They use smaller laser modules with integrated diodes and lenses. This makes the initial beam shooting out very narrow which allows for a much smaller window size. Others use ultra thin glass technology. This is high transmittance chemically strengthened glass similar to the material used on your mobile phone screen. This reduces the thickness of the window frame while keeping it strong. A good example is the Bosch GLL 30 pocket level. Its window is very compact and looks almost like a slightly larger camera lens.

Point Lasers

If you do not need a continuous line and just need to find vertical or horizontal points the gap on these products is the smallest. The laser shoots out directly as a dot. It does not need a prism to spread it out. The shell only needs a few tiny round holes drilled into it usually less than 1 centimeter wide. You see this on 3 point or 5 point laser levels.

Why doesn't everyone just make the break smaller?

You might ask why everyone does not just make the gap small. Small gaps certainly look better and are more durable. But we are limited by two main physical limits.

First is the Fan Angle. The smaller the gap the more likely the laser will be blocked by the outer shell. To achieve 360 degree full room coverage you physically must have enough clear open space for the light to shoot out.

Second is the distance to the wall. Look at the CIGMAN 3D levels. The window is large and it sticks out from the body. We did that for a reason. It allows the laser line to get extremely close to the wall. It is usually only about 7 millimeters. If we pulled the window inside the shell to make it look smooth you simply could not do the work. You would not be able to tile or plaster right up against the wall surface.

The Problem With That Rotatable Window Design

You might have seen some new 4D levels on the market that feature rotatable windows.

The idea behind it is actually pretty clever. The design allows you to spin the protective cover around. This means when you are not working, the glass is hidden and safe. It also helps you manage blind spots since you can theoretically rotate the cover out of the way to let the laser pass.

Visually it looks great. It makes the whole unit look unified and keeps the laser head safe. But if you talk to professionals who actually use these on job sites, they often have a different opinion. The downsides can be a real headache. While it fixes the ugly gap problem you end up sacrificing the two things that matter most which are stability and accuracy.

Mechanical Wear and Loss of Accuracy

The whole point of a laser level is accuracy. You usually need the error to be less than 3mm over a distance of 10 meters.

First let us talk about physical wear. When you have a window that rotates you have moving parts. If you spin that window frequently the mechanism starts to wear out. It develops play or looseness. If the hinge gets loose and the angle of that glass shifts by even a tiny fraction of a hair the laser beam bends differently. Suddenly the spot where the laser hits the wall is off by a huge amount.

Then there is the issue of vibration. The internal pendulum that levels the laser is very delicate. If the rotating structure is not designed perfectly the vibration from spinning it can shake the insides. This can damage the damping system and eventually your auto leveling function just fails.

Refraction and Ghosting

To make a window that can rotate you usually cannot use flat glass. It has to be curved or shaped like a polygon. This creates a problem with the incident angle. The laser beam hits the glass at a steep slant instead of straight on. This bends the light and causes refractive offset.

There is also the dirt factor. Moving parts are magnets for grease and oil. It is easy to get fingerprints or grime in the gaps. When the laser beam passes through a smudged rotating window, the light scatters. The crisp line on your wall turns into a thick blurry mess. You might even see double lines which we call ghosting.

Sealing and Dust Issues

Sealing is another huge issue. A good laser level needs to be rated IP54 to handle dust and water splashes. With a fixed window we can glue it shut completely. But a rotating window needs a physical gap so it can move.

That gap is a trap. On a renovation site you have fine drywall dust and sand floating everywhere. That dust drills right into the gaps of the rotating track. It jams the mechanism so it gets stuck. Worse that gritty dust acts like sandpaper. It grinds away at the glass coating every time you spin it. Eventually your clear window turns cloudy and white and your laser brightness drops significantly.

More Blind Zones

Finally you actually end up with more blind spots. The rotating mechanism needs pillars to hold it up. Those structural supports physically stand in the way of the laser beam.

Compare that to the big fixed openings you see on brands like CIGMAN. Those are designed to give you a continuous line all around the room. But with rotating windows the frame often blocks the beam at certain angles. You end up with annoying break points in your horizontal line on the wall.

Feature	Fixed Window (Mainstream Design)	Rotatable Window (Concept Design)
Durability	Extremely High. No moving parts.	Average. Track collects dust easily.
Accuracy Stability	Excellent. Constant refraction rate.	Easily affected by mechanical shifts.
Wall Distance	Extremely Close. Helps with tiling.	Farther. Mechanism takes up space.
Best Environment	Harsh sites. High dust.	Labs or light DIY use.

Why the biger break laser level is still the main choice?

You will notice that even in 2026 brands like CIGMAN still keep that large gap design on their main models. It is not because they are old fashioned.

It is because the light path needs to be open. If you want 360 degree coverage, the light physically has to shoot out at a very wide angle. The shell cannot stand in the way.

It is also easier to clean. You can just wipe the dust off the large glass surface.

Heat is another factor. High brightness laser tubes like the Osram green ones generate a lot of heat. The metal structure around that big window actually helps cool them down.

There is a deep comparison video of the CIGMAN CM-701 versus expensive Bosch models if you want to see how this performs on actual construction sites.

So How Do I Choose The Right Laser Level?

Based on what people are buying this year I made a simple comparison chart. I am not telling you exactly what to buy but this helps you decide based on what you actually need.

Who Needs It	Type To Buy	Budget (USD)	What It Does Best
Homeowner / DIY	Simple Cross Line (Small Window)	$30 - $60	Cheap and small. Red or Green cross lines. Good for hanging pictures or curtains.
Electrician / HVAC	Dot and Line Combo (Multi Window)	$80 - $180	Vertical Plumb Spots. Makes it easy to align the ceiling with the floor.
Tiler / Carpenter	3D or 4D Line Laser (Big Window)	$100 - $220	360 degree lines. Gets extremely close to the wall or floor.
Contractor / Site Manager	Rotary Laser (Enclosed Cover)	$500 - $1500+	Long range over 150m. High accuracy. Works with a receiver for foundations.

If you really care about how the gap looks, I summarized it from that angle too. The design of the gap just shows you functional logic. The more the window sticks out, the better the coverage usually is.

Who It Is For	Cost (USD)	The Look	Why You Want It
Budget DIY	$30 - $50	Recessed Small Window	Cheap and portable. Good for simple housework like hanging art.
Mainstream Pro	$100 - $130	Protruding Big Window (3x360)	Best value. Covers all 3 axes. Perfect for tiling and ceilings.
Advanced	$160 - $220	4 Window Design (4D)	Adds a floor line. Often has Bluetooth and remote. Many battery options.
High End Industrial	$350 - $450	Reinforced Big Window	Extremely high accuracy. Stable Bluetooth. Strong brand support. For heavy use.
Long Range / Civil	$700 - $900+	Enclosed Rotary Tower	No visual gap. Shoots laser by spinning. Good for outdoor site leveling.

The Weekend DIYer

Who is this for?

What you do: Keep it simple. Mostly hanging pictures, shelves, or curtains on one wall.
The Look: Tiny laser window, looks like a neat little box.
The Catch: Only shoots a laser straight ahead. No fancy 360 degree wrap around lines here.

Top Pick

Model: CIGMAN CM-G01
The Good Stuff: Basic cross line laser. Runs on regular AA batteries. Super light and easy to use.
Why get it: Perfect if you are on a budget. Toss that old bubble level, this is way better.

Step Up Option

Model: CIGMAN CM-G02
The Good Stuff: Takes AAs OR a rechargeable battery. Feels a bit more premium in hand.
Why get it: Great if you do projects more often. Comes with a nice protective case so it survives the garage.

The Pro Electrician & Plumber

Who is this for?

What you do: Running conduit, aligning ceiling fixtures, or dropping pipes. You need reliable vertical lines and long runtimes.
The Look: Classic cross line style but with multiple laser windows for extra coverage.
The Catch: Does not give you the full 360 degree wrap around room coverage of the bigger models.

Top Pick

Model: CIGMAN CM-508
The Good Stuff: 5 line laser with a massive 4400mAh battery for all day runtime. Upgraded vertical projection.
Why get it: Perfect for ground level projection and vertical alignment. The battery outlasts you on the job site.

Step Up Option

Model: CIGMAN CM-S01
The Good Stuff: 12 lines full 360 degree layout with Bluetooth App control.
Why get it: You can mount it high on a ceiling grid and control the lines straight from your phone without messing up the alignment.

The Interior Finisher

Who is this for?

What you do: Tiling, drop ceilings, installing cabinets. You need lines everywhere, all at once.
The Look: The classic 3D or 4D laser look. Big bug eyes popping out of the device.
The Catch: Those big glass windows are exposed, so you have to be careful not to smash them on the job site.

Top Pick

Model: CIGMAN CM-701
The Good Stuff: Our all around pro workhorse. 12 lines for a full 360 degree layout, remote control, and a solid 4000mAh battery.
Why get it: It handles pretty much any indoor leveling job you throw at it. It is the gold standard for most pros.

Step Up Option

Model: CIGMAN CM-S02
The Good Stuff: Steps up to 16 lines, giving you that extra bottom laser. Powered by dual 2600mAh batteries.
Why get it: If you lay tile or flooring for a living, that extra low clearance floor line is an absolute game changer.

The General Contractor

Who is this for?

What you do: Framing, pouring foundations, and heavy construction. You fight the sun and job site dust all day.
The Look: Rugged, reinforced casing built to survive falls, drops, and lots of abuse.
The Catch: Even the brightest green lasers fade in direct sunlight. You will absolutely need an outdoor receiver for daylight jobs.

Top Pick

Model: CIGMAN CM-801
The Good Stuff: 12 lines with an outdoor strobe mode to maximize visibility. Features a detachable base.
Why get it: Purpose built for high end outdoor work. Pair it with a receiver, and you are ready to grade foundations.

Step Up Option

Model: CIGMAN CM-S04
The Good Stuff: The ultimate site boss. 16 lines, reinforced body, IP54 rating, and a large LCD screen.
Why get it: Built like a tank for real construction sites. The screen takes all the guesswork out of your setup and battery life.
