CIGMAN CM-S02 4x360° 16 Lines Laser Level

The CIGMAN CM-S02 is best suited for indoor construction and renovation tasks that require full-room laser coverage: drywall installation, ceiling alignment, tile and flooring layout, cabinet and shelving installation, and wall partition work. Its four 360° laser planes let you align all four walls, the ceiling, and the floor in a single setup, saving significant time on complex room layouts.

A 4×360° laser level projects four full 360-degree laser planes simultaneously — typically one horizontal plane and three vertical planes. This provides complete room coverage, projecting reference lines on all four walls, the ceiling, and the floor at the same time. The CM-S02 generates 16 individual laser lines from these four planes, eliminating the need to reposition the tool for most standard interior layout tasks.

The CM-S02 delivers a leveling accuracy of ±1.5mm at 5 meters (approximately ±1/16 inch at 16 feet). This accuracy is suitable for most home renovation and interior finishing applications including tile installation, drywall, cabinetry, and trim work. The self-leveling compensation range is ±4°, meaning the tool automatically levels itself when placed on surfaces tilted up to 4 degrees.

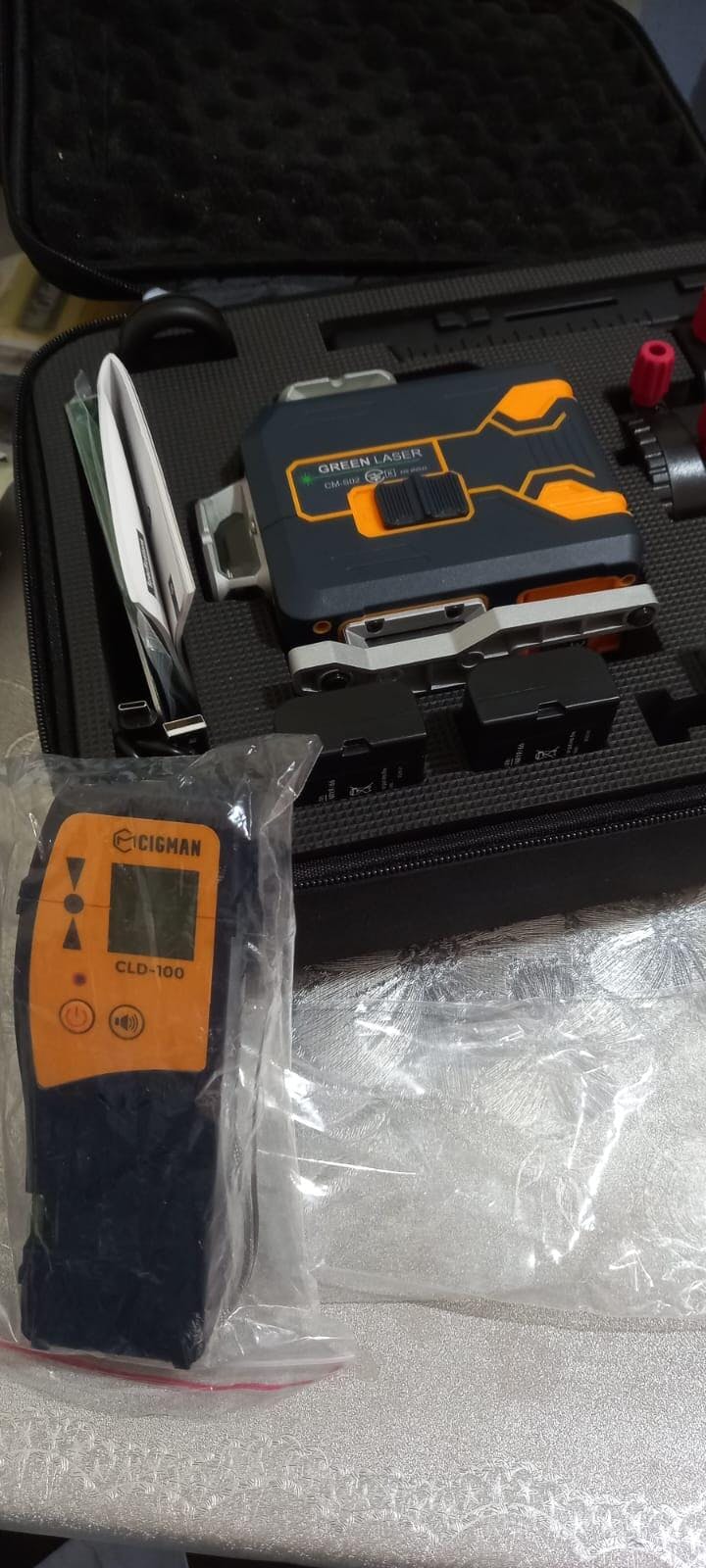

The CM-S02 can be used outdoors in low-light or overcast conditions. With pulse mode enabled, it works with a compatible laser detector to extend usability beyond direct-visibility range. However, in bright outdoor sunlight the green laser beam may be difficult to see without a detector. For heavy outdoor use — such as foundation layout or land grading — a rotary laser level designed specifically for outdoor applications would be a better fit. The CM-S02 is rated IP54 for dust and splash resistance.

Green laser beams are approximately 4× more visible to the human eye than red lasers under the same conditions, because the human eye is most sensitive to green light. This makes green lasers easier to see in brighter environments and at longer distances. The trade-off is that green laser diodes typically consume slightly more battery power. For most indoor work, green lasers allow for faster, less eye-straining alignment.

The CM-S02 uses a rechargeable 7.4V 2600mAh lithium-ion battery (two batteries included). In normal operation mode with all lines active, runtime is approximately 8 hours per battery. In energy-saving mode (reduced brightness or fewer active lines), runtime extends to approximately 26 hours. The batteries charge via standard Type-C cable and are removable, so you can swap in the second battery for uninterrupted work on long jobs.

In self-leveling mode, the CM-S02 automatically levels its laser planes within a ±4° tilt range using an internal pendulum mechanism. This is the standard mode for most leveling and alignment tasks. In manual mode (also called lock mode), the pendulum is locked and the laser planes are fixed at whatever angle the tool is tilted to — useful for projecting plumb bobs, marking angled lines, or working on sloped surfaces. The mode is switchable via the control buttons or the smartphone app.

Yes. The CM-S02 connects via Bluetooth to the CIGMAN app, available for both iOS and Android. The app allows you to control power on/off, switch between self-leveling and manual mode, toggle individual laser line groups, and adjust brightness — all from your phone. This is particularly useful when working alone on ceilings or elevated surfaces where reaching the device is inconvenient. A physical Bluetooth remote control is also included in the package.

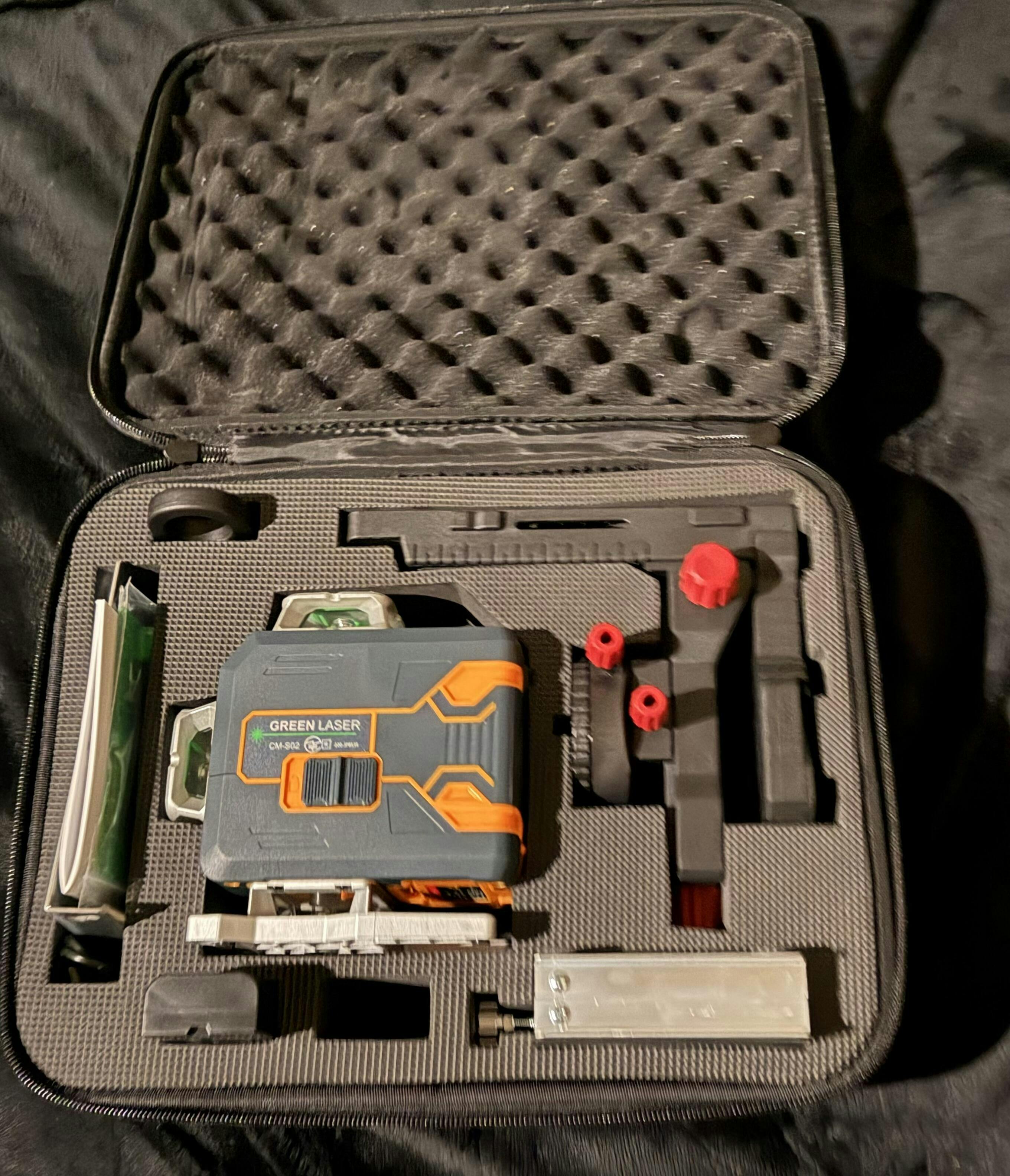

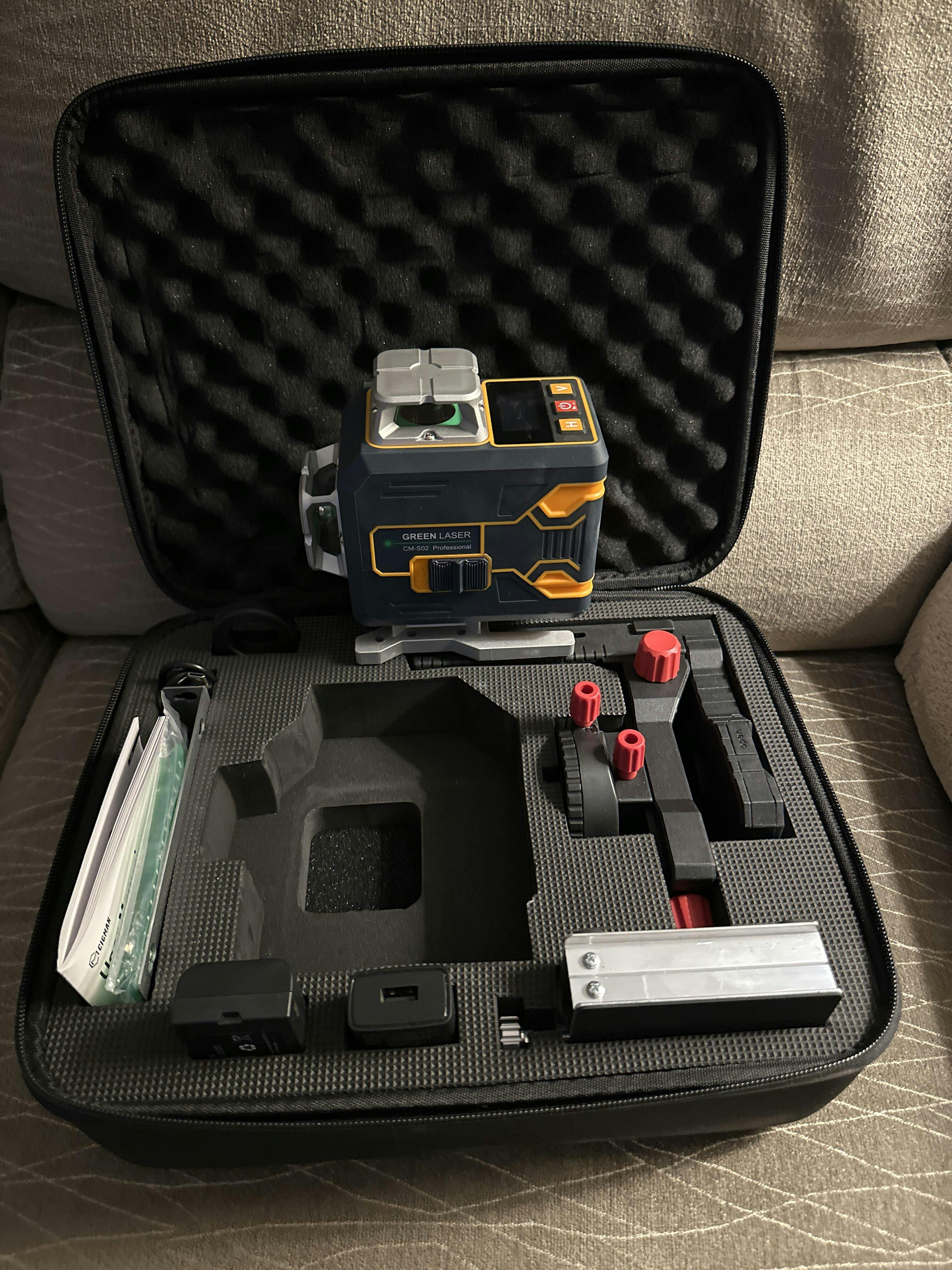

The CM-S02 package includes: 1× laser level unit, 1× magnetic mounting bracket, 1× lifting base (mini tripod adapter), 1× Type-C charging cable, 1× magnetic target plate, 1× wall panel, 2× 2600mAh rechargeable lithium-ion batteries, and 1× Bluetooth remote control. A compatible 1/4-inch thread tripod is not included but can be added via CIGMAN's bundle offer.

Best for: DIY homeowners, interior contractors, renovation professionals, and tradespeople who need full-room laser coverage for indoor projects. Ideal for anyone doing drywall, tile, cabinetry, trim, or partition work who wants a single tool that covers an entire room in one setup.

Not ideal for: Precision engineering or surveying work requiring accuracy tighter than ±1.5mm. Heavy outdoor or long-range construction where a rotary laser with detector is more appropriate. Users who only need a basic two-line cross-line level for occasional small tasks — simpler, lower-cost models may suffice.
